YS-65J Honey Stick Packaging Machine

Price: Negotiable
Model: YS-65J
Speed: 30-60BAGS/MIN
Bag Size: Length:30-180 mm Width:40-130mm
Film Material: Packing material:BOPP/Polyethylene,Aluminium/PolvethylenePaper/Polvethyiene. Polvester/Aluminizer/Polvethvlene and so on
Gas Source: ≥0.6Mpa
Bag Shape: The corners can be cut，Back seal, three side seal, four side seal
Pack Weight Range: 1-100g（customizable）
Machine Size: 850 * 1100 * 1900 mm
Machine Weight: 400kg
Certification: CE,ISO,SGS

Get Quote

+852-66604682

Technical Features 1

Servo motor controls film pulling

Technical Features 2

Use rack packaging to make the packaging smoother

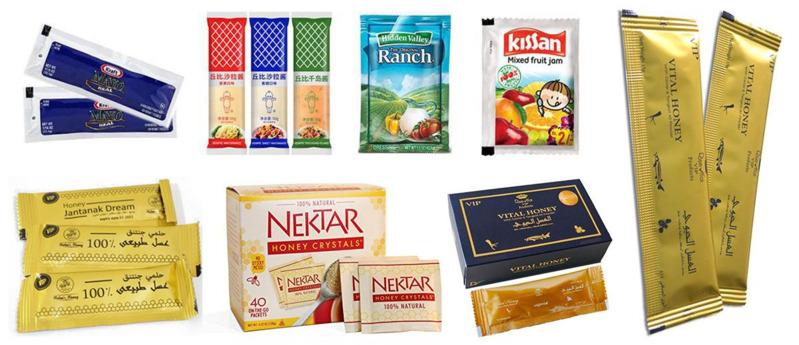

Sample: Suitable for hand sanitizer, disinfectant, honey, milk, jam, ketchup, salad dressing, shampoo, shampoo, vinegar, soy sauce, etc

Packing bag shape:

raw material:

1.Touch ScreenPLC： intelligent control touch screen,Can adjust the temperature, packagesize and package weight

2.Horizontal constant temperature barrel：The horizontal material barrel with a stirrer is more suitablefor thick sauces.A constant temperature system can beadded to prevent the sauces from cooling and solidifyingwhi

3.Vertical Material Barre：Vertical material barrels are suitable for sauces with good fluidity

4.The Film Pulling Frame Stabilizes The Film：The film pulling frame is used to fix and tighten the packaging film toensure that the film remains flat and stable during the packaging processavoiding wrinkles and devia

5.The Feed Opening：The pump of the barrel is directly connected to the former, so that the material can be directly sent into the packaging bag for packaging,

6.Regulator：Adjust the capacity Within the machine packaging parameter.Quantitative feeding and filling range is adjustable

7.Lower Cutter Design：Suitable for different cutting methods such as sawtooth cuttingflat cuttinground corner cuttingspecial-shaped cutting

YS-65J Honey Stick Packaging Machine

Technical Parameters	3-100ml
Measuring Scope	（L）：30 - 180 mm （W）：20-75mm
Packing Speed	30 - 60 bags/min
Dimension ( L * W * H )	850 * 1100 * 1900 mm
Weight	400kg
Total Power	220V / 50Hz / 1.4kw
Gas Source	≥0.6

Single-chip microcomputer control system, screen display, frequency conversion governor, sealing knife automatically open when closing the machine.
Bag making, filling, measuring, sealing, date printing, and finished product conveying will be finished at one time(can also use PLC touch screen).
The constant temperature barrel can keep the semi-fluid at a suitable temperature to make packaging smoother

Related Products

More》

Related Resource

Honey Stick Packaging Machine

Related FAQ

1.What are the applications of Sachet Stick Pack Machine in the food industry?

Sachet Stick Pack Machine is widely used in the food industry and can be used to pack condiments, instant drinks, candies, biscuits, chocolates, nuts and other products. It not only improves production efficiency, but also ensures the freshness and hygiene of the products, making it easier for consu...

2.What types of products can be packaged using a sachet stick pack machine?

Sachet stick pack machines are highly versatile and can handle a wide range of products, including: - Powders (protein powder, instant coffee, spices) - Granules (sugar, salt, instant beverages) - Liquids (syrups, sauces, oils) - Pastes (honey, toothpaste, condiments) Their flexibility makes them su...

3.Can the sachet stick pack machine handle different packing sizes?

Yes, most sachet stick pack machines are designed to be flexible and can handle packs of different sizes. Adjustable settings and replaceable parts allow the machine to adapt to different sizes and volumes, meeting diverse packaging needs....

4.How do I choose the right sachet stick pack machine for my needs?

When selecting a sachet stick pack machine, consider the following factors: - Product type: Ensure the machine can handle the specific product you intend to package. - Production capacity: Choose a machine that meets your desired production speed and volume. - Packaging size: Verify that the machine...
