Automatic Honey Filling Machine: Introduction and Technical Applications

A complete line may include heating or temperature control where the product process permits, transfer, filtration, hopper level control, dosing, nozzle movement, container or pouch handling, sealing or capping, coding, inspection, and discharge.

The filler is one controlled step in a larger line

Honey enters from a storage or day tank through a transfer path. Level, pressure, temperature, and air in the supply can influence dosing. The filler measures or displaces a portion, opens a valve, moves product through a nozzle, and stops flow cleanly. The receiving package must be present and correctly positioned.

After filling, jars may be capped and pouches or sachets sealed. Coding and inspection may follow. If the filler operates faster than the closure equipment, containers accumulate or the filler waits. If product supply is unstable, the packing machine cannot maintain its planned sequence.

Define interface signals for ready, container present, fill complete, fault, stop, and restart. This prevents product release during a missing package or an unsafe downstream condition.

Control viscosity without damaging the product

Honey flow changes substantially with temperature and can differ by origin, processing, moisture, and crystallization state. Record the normal and limiting condition at the filler. A sample warmed for a demonstration may not represent a cold production startup.

Controlled temperature can improve flow in an approved process, but heat must follow product-quality requirements. Review tank, pipe, hose, pump, and nozzle conditions rather than heating one location and allowing another to cool. Insulation or circulation may be part of the engineering solution.

Crystals or inclusions require adequate clearances and may alter measurement. Filtration should not be assumed; its use and specification belong to the product process. Avoid introducing air through leaks, aggressive agitation, or an unsuitable pump because bubbles can affect volume and appearance.

Compare displacement, pumping, and mass control

Piston-type fillers move a defined displacement and can suit viscous products within their design range. Pump-based systems control a motor or time, sometimes with flow feedback, and can offer flexible recipes. Net-weight filling measures the package during filling and can reduce dependence on density, although stabilization and container handling affect the cycle.

No method is universally best. Compare target range, honey condition, cutoff, particles, accuracy, output, cleanability, and maintenance. A very wide dose range may require change parts or separate filling heads. Multiple nozzles increase theoretical output but must remain balanced.

Use consecutive finished-package results at the smallest and largest targets. Review individual spread, low and high rejects, product giveaway, and performance after a stop.

Match the nozzle and handling system to the package

Jars and bottles require container infeed, spacing, centering, nozzle clearance, and protection against rim contamination. Their opening and stability determine nozzle arrangement. Capping torque or closure integrity is a separate but connected control.

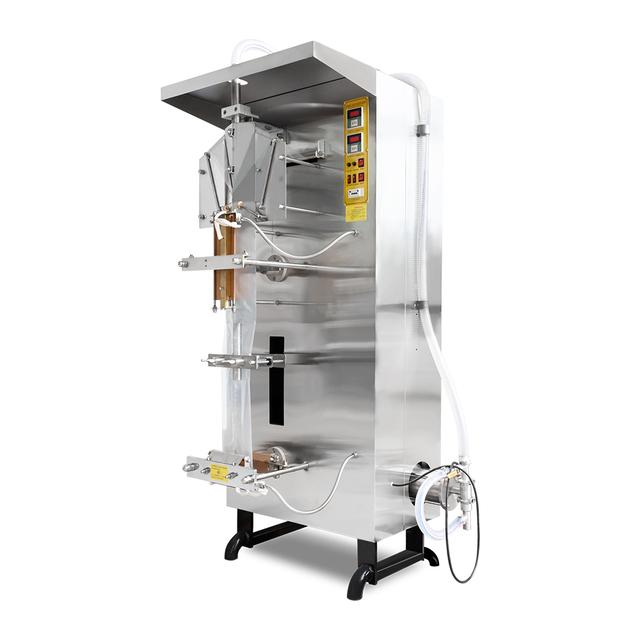

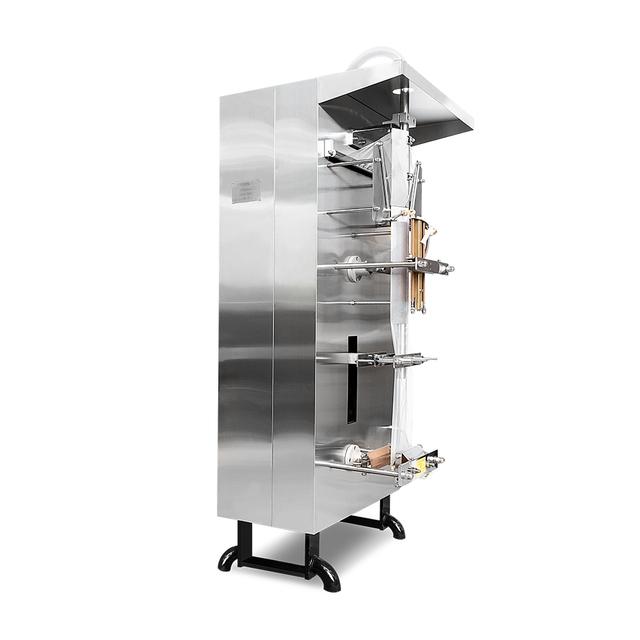

Small sachets formed from rollstock need precise dosing and clean cross seals. Premade pouches must be picked, opened, filled, and top-sealed; a stand-up gusset may need support. Spouted pouches follow a fitment-filling process and should not be treated as ordinary open-top bags.

For each package, provide opening diameter or width, height, fill target, headspace, material, seal or closure area, and filled dimensions. The selected sauce packaging machine should have a demonstrated package matrix.

Prevent strings and drips from reaching closures

Honey can form a tail as the valve closes. Nozzle design, valve location, suck-back where appropriate, fill speed profile, and nozzle movement influence cutoff. A bottom-up or staged fill may help particular containers, but its value must be tested.

Excessive flow can trap air, splash, or coat the rim. Slow flow can limit output and allow temperature loss. Develop a profile that fills quickly in the main portion and approaches cutoff under control, within the installed system's capability.

Observe stop and restart. Honey remaining in a nozzle may continue to move while the line is paused. A drip tray can contain residue during an approved state, but it does not replace a stable cutoff during package filling.

Design the product path for recovery, cleaning, and inspection

Review drainability, low points, hose lengths, pump chambers, valves, nozzle tips, seals, and connections. The cleaning method may use controlled circulation, partial disassembly, or manual removal according to machine design and the plant's validated program.

Product-contact parts should use materials compatible with honey and cleaning agents. Removable parts need identification and protected storage. Operators should be able to inspect O-ring grooves, valve seats, and other places where sticky residue remains.

Changeover includes product recovery, line clearance, cleaning, drying where required, reassembly, recipe confirmation, priming, and first-off approval. The complete sequence determines practical flexibility between honey varieties or other products.

Map the application to its main technical question

Validate product, package, and closure in one run

Define honey batch, temperature range, target, tolerance, package, supply condition, sample plan, closure tests, and output calculation. Include enough material for setup, stable operation, replenishment, a planned pause, restart, and cleaning observation.

Record individual fills, nozzle drips, bubbles, rim or mouth contamination, package handling, seal or cap defects, waste, stops, and operator intervention. Test the coldest approved condition and the largest target, as these may create the longest fill and hardest cutoff.

Retain approved samples and configuration details. Confirm utilities, guarding, manuals, recommended spares, training, and ownership of upstream and downstream equipment. Results should identify the exact application proven, not imply unlimited compatibility.

Container and pouch tare can affect how results are interpreted. Net-weight systems account for each package during the cycle, while volumetric or displacement fillers require finished-pack checks using representative tare. Glass jars, plastic containers, and flexible pouches have different variation and handling behavior.

Air management deserves attention because bubbles occupy volume and can change appearance. Inspect pump inlet conditions, tank return, hose connections, and agitation. Allow an appropriate settling method before measurement when the product process permits, and do not treat foam as only a cosmetic issue.

For multiple filling heads, compare output and individual results by nozzle. Wear, valve timing, hose length, or supply distribution can create head-to-head differences. Identify each sample during acceptance and keep maintenance records by installed position.

Packaging-material compatibility is a separate engineering task. Honey, temperature, cleaning residues, closures, liners, and flexible sealants should be reviewed by qualified suppliers and the buyer. A short machine run demonstrates handling and filling, not the full storage life of a package.

Plan product recovery before selecting pipe routes and tank position. Long hoses and low points increase retained honey and cleaning burden. A line designed for drainability can reduce loss, but recovered product still needs an approved identity and disposition.

Site commissioning should reproduce cold startup, normal running, stop recovery, and cleaning with trained operators. Confirm that the factory result remains valid after connection to the plant tank, utilities, capper or sealer, inspection, and conveyors.

Inspection frequency can change across the batch. Cold startup, tank refill, nozzle service, package replenishment, and restart deserve additional samples because they disturb the established condition. Once the process is stable, the normal quality plan applies. Event-based checks expose issues that evenly spaced samples may miss.

A preventive-parts list should focus on product seals, valve components, nozzles, hoses, heaters, temperature sensors, pumps, and package-handling wear items in the delivered configuration. Store elastomers by approved material and shelf condition. Similar-looking parts can behave differently with heat, honey, or cleaning agents.

Filled-package appearance should be assessed after normal settling. Honey may level slowly, and trapped air can rise after discharge. Define when operators inspect fill line, bubbles, leakage, and closure cleanliness so samples are compared at a consistent point.
