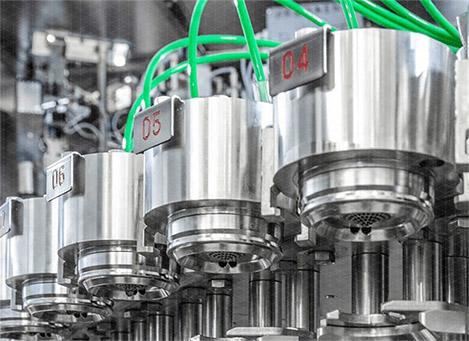

Beverage Filling Machines: Filling Methods and Features

The correct choice also depends on foam, particles, temperature, oxygen sensitivity, container rigidity, neck finish, required cleaning method, and the process before and after filling. A buyer should compare machines using the intended beverage and production containers, then judge accepted output, fill result, product loss, interventions, and cleaning evidence under the same trial conditions.

Map the Beverage, Container, and Line Boundary

Describe the beverage at the filler inlet. Record its temperature range, density, flow behavior, dissolved or entrained gas, tendency to foam, suspended pulp or particles, and sensitivity to holding or recirculation. Note whether different recipes share the line and which ingredients can settle, separate, or coat a valve. A product name such as juice or sauce does not provide enough information to size a passage or choose a shutoff principle.

The container specification needs equal attention. Capture material, nominal capacity, neck and finish dimensions, rigidity, dimensional tolerances, and the way empty containers arrive. Flexible bottles can deform under handling or pressure. Transparent packs may reveal small level differences that would be invisible in an opaque container. Supply closures and identify the time allowed between filling and capping.

Define the interfaces on a layout: product supply pressure, return or recirculation path, container infeed, rinse or sterilization boundary if used, closure equipment, conveyors, reject stations, and line-control signals. The filler cannot compensate for unstable feed pressure or containers that arrive out of pitch, so those dependencies should appear in the acceptance scope.

Gravity Filling for Predictable Free-Flowing Products

Gravity filling lets product flow from an elevated supply through a valve into the container. It is a straightforward principle for liquids that move consistently under their own head and do not require pressure management for carbonation. Performance depends on liquid head, valve opening, venting, temperature, and the target used to stop the flow.

A trial should challenge supply-level changes and the beginning and end of a batch. If the machine relies on a constant-level reservoir, verify how that level is maintained and how disturbances are recovered. Watch for drips after valve closure, neck wetting, splashing from excessive fall, and air that cannot escape the container cleanly.

Gravity is not a synonym for low accuracy or simplicity in every installation. Valve design, control resolution, product consistency, and container presentation still determine the result. Where the beverage contains fibers or particles, confirm passage size and shutdown behavior using representative material rather than assuming it will follow the liquid phase.

Overflow Filling When Visible Level Matters

An overflow filler introduces product until it reaches the return path of the nozzle, establishing a repeatable liquid height in the container. Excess product returns to the reservoir. This principle can be useful for clear bottles displayed side by side because apparent level is controlled even when internal container volume varies within its accepted tolerance.

Consistent level is not the same as identical net content. Containers with different internal volume can hold different quantities at the same height. The project therefore needs both presentation criteria and the applicable quantity-control method. Sampling should preserve container identity so level variation, container variation, and actual content are not confused.

Return flow changes the product journey. Assess whether recirculation introduces air, raises temperature, damages inclusions, or extends residence time beyond the process plan. Foaming liquids may demand nozzle and vacuum adjustments, controlled entry below the surface, or another method entirely. Evaluate product quality as well as the visual fill line.

Positive Displacement for a Defined Dose

Positive-displacement filling meters product by moving a known working volume, commonly through a piston, cylinder, or related chamber. It is often considered for products whose viscosity makes simple free flow less predictable, and it can provide a decisive dose profile. The broad principle does not establish accuracy by itself; chamber filling, valve sealing, air removal, temperature, and product compressibility all affect delivery.

Product pathways must accommodate the largest approved particle or fiber without cutting, trapping, or blocking it. Valve and nozzle selection should be based on actual shape and deformability, not only a supplier's nominal particle size. For thick beverages or spoonable products, study the end of the stroke for stringing and decide how suck-back, cutoff, or nozzle motion influences both dose and container cleanliness.

Check refill behavior at the chosen operating pace. A cylinder that does not refill completely will not deliver its nominal displacement. Long supply lines, restrictive fittings, low hopper level, or an aerated product can create variation. Record sequential fills around these events rather than relying on a small sample taken after the system has stabilized.

Pump, Timed-Flow, and Weight-Based Approaches

Pump fillers use a controlled pumping action to transfer product, with the dose derived from rotations, displacement, flow feedback, time, or another control signal depending on the design. They can offer a programmable fill profile and a product path tailored to the application. Pump type must be chosen around shear sensitivity, particles, viscosity range, cleanability, and the pressure needed to reach the nozzles.

Timed-flow filling is most dependable when product pressure and flow remain controlled. A valve open for the same interval does not guarantee the same quantity if temperature, head, restriction, or aeration changes. If a flow meter is used, verify its suitability for the beverage and its installation conditions. Calibration and empty-line recovery should be included in routine procedures.

Net-weight filling measures the receiving container during the fill and stops against a weight target. It can separate quantity control from some container-volume variation, but scale stability, vibration, product impact, drips, tare variation, and conveyor transfer need management. It may be attractive for particular products or larger fills, yet the decision should come from a cycle and accuracy study on the actual line.

Counter-Pressure Filling for Carbonated Beverages

Carbonated beverages require control of pressure and temperature so dissolved gas is not released violently during transfer. A counter-pressure sequence typically seals against the container, establishes an appropriate gas pressure, admits beverage under controlled differential pressure, then relieves pressure in a managed way before the container leaves the valve. The exact sequence and gas handling depend on the equipment and process.

Container strength and neck sealing are fundamental. Test every approved bottle or can type, including normal dimensional variation. A poor seal at the filling valve can create foam and loss that resembles a product problem. Temperature at the filler must also represent production, because warmer product can behave differently from the sample demonstrated under favorable conditions.

Measure more than fill quantity. Record foam behavior, product loss, container wetting, pressure faults, time to close the container, and any quality attribute the beverage process owner has defined. Cleaning and startup should account for gas circuits and product retained in the valve arrangement. These details make counter-pressure equipment a process system, not simply a different nozzle.

Connect Filling Method to Hygiene and Container Control

Every filling principle creates a different contact path. Review tanks, manifolds, hoses, meters, pumps, cylinders, valve cavities, nozzles, return lines, and drains against the site's cleaning plan. Ask which parts are cleaned in place, which are removed, how coverage or manual access is verified, and how the system is drained and dried. Hygienic suitability must be confirmed against the product, plant method, and destination requirements.

A fast fill that leaves product on the neck can compromise closure application. Coordinate nozzle height, container centering, bottom-up motion where needed, cutoff, and transfer to the capper. Inspect containers after realistic conveyor acceleration and accumulation, because slosh can contaminate a clean finish after the fill valve has performed correctly.

Changeover evaluation should cover product recovery, cleaning, format parts, recipe selection, nozzle setup, trial containers, and release checks. Time from the final accepted container of one run to the first accepted container of the next. This exposes labor and product loss that a mechanical format-change demonstration omits.

Select With a Trial and a Whole-Line Decision Table

Shortlist the filling principle using the dominant process constraint, then test commercial product and containers at normal and difficult conditions. Include startup, low supply level, replenishment, a planned stop, restart, and the transition to closure. Collect sequential samples, classify rejects, and log each adjustment or manual intervention. Use the same acceptance definitions when comparing suppliers.

Use the liquid packaging machine range as a configuration reference after the method is narrowed. The final scope should state product-contact materials, valve and nozzle design, supply conditions, container range, format parts, cleaning sequence, controls interfaces, inspection provisions, and trial commitments. Unverified recipes should remain listed as open tests.
